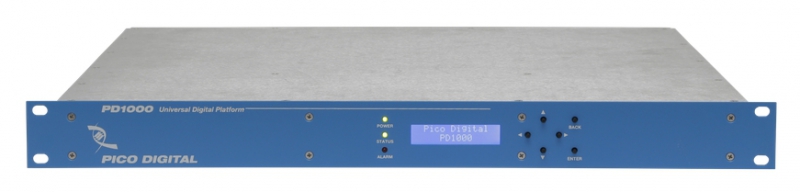

Encoder PD1000 ATX Networks / Pico Digital

The professional-grade PD1000 HD encoder modulation system allows users to encode HD, SD, and HD-SDI signals in MPEG-2 or H.264 formats, all in a single rack space. The unit supports real-time encoding, while offering the flexibility of two, four, six, or eight HDMI (in the clear), HD-SDI, component, and composite (closed captioning) inputs. The HD encoder offers simultaneous QAM and IP outputs. The PD1000 enables remote control and monitoring via an intuitive Web interface, provides virtual channel mapping, and supports Dolby® Digital audio encoding. The HD encoder is ideal for commercial residential properties, academic and medical facilities, local area network applications for both CATV and broadcast, as well as the hospitality industry.

Encoder PD1000 features:

  • Platform-based encoder with up to four field upgradeable dual channel encoder modules

  • Upgradeable software for new future-proof features
    Supports 480i to 1080p real-time encoding and up to 8 HD video channels in MPEG-2 or H.264 formats, all in 1RU

  • MPEG audio encoding plus optional Dolby® Digital Stereo Creator Technology (One audio pair per video)

  • No change of resolution between input and output

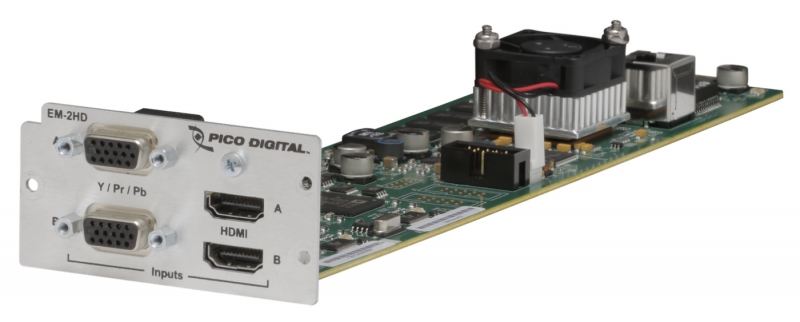

  • Inputs per EM-2HD dual encoder module: component, HDMI (Clear), and composite/closed caption

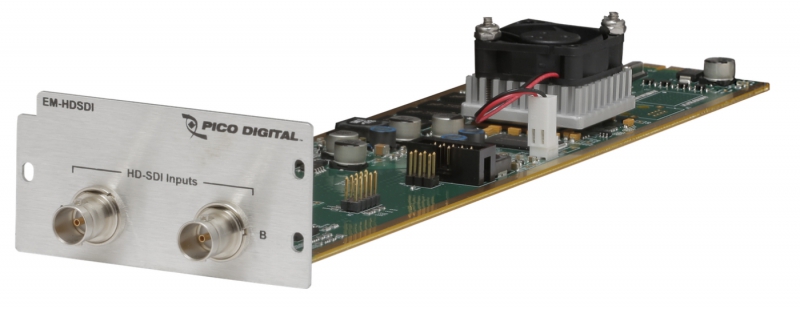

  • Inputs per EM-HD-SDI dual encode module: HD-SDI (BNC)

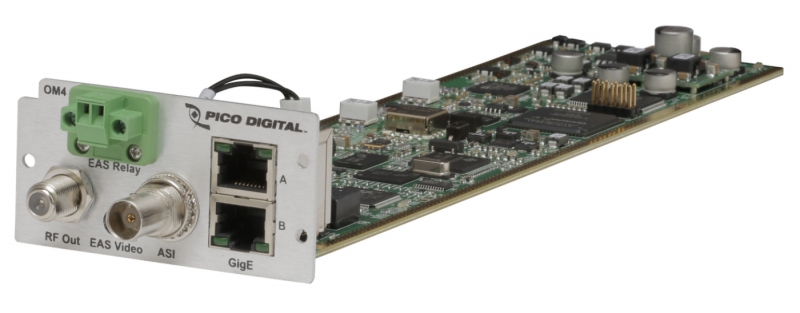

  • Integrated support for Emergency Alert System (EAS)

  • Automatic detection of input type and format

  • Outputs four consecutive QAM channels

  • IP output: Unicast/Multicast, RTP/UDP/IP, RTSP and SPTS

  • Simultaneous QAM/IP output

  • PSIP tables allow users to configure virtual channel maps for each channel

  • High output power with 60 dbmV max., pre-combined

  • Secure management and configuration via an easy-to use to use web browser

  • External DC backup power supply

Do not hasitate to use our contact form to receive more information about PD1000.
